Aviation Lighting
Quantum Solar Lighting provides reliable and intelligent aviation lighting solutions for airports, helipads, obstruction marking and other critical infrastructure applications. Our systems are designed for high visibility, durability and long-term performance in demanding environments.
AIRFIELD LIGHTING, SYSTEMS & ACCESSORIES
Quantum Solar’s airfield lighting solutions utilize advanced LED technology to deliver high visibility, energy efficiency and reliable operation. Designed for airports, helipads and remote aviation facilities, our systems are built to perform in challenging weather and operational conditions.
HELIPORT LIGHTING
Quantum Solar Lighting provides reliable heliport and helipad lighting solutions for commercial buildings, hospitals, offshore platforms and private aviation facilities. Our systems are designed to deliver high visibility, operational safety and dependable performance in demanding environments.
Our Products
Advanced solar lighting technologies for safer navigation and airfield operations.

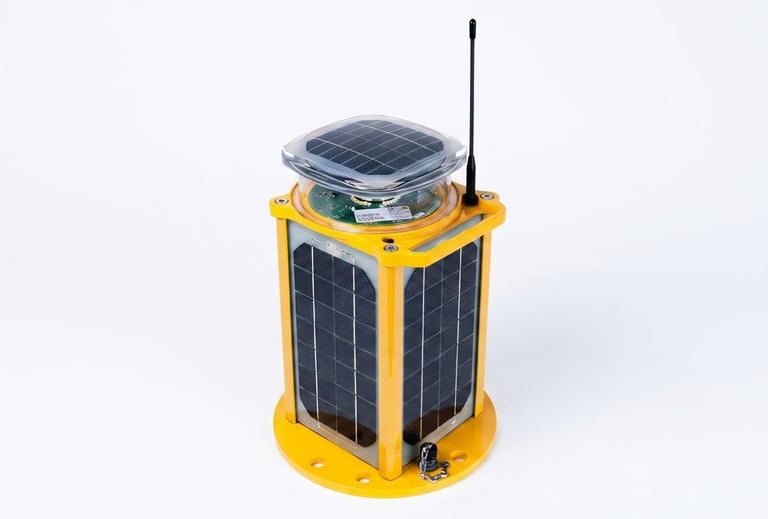

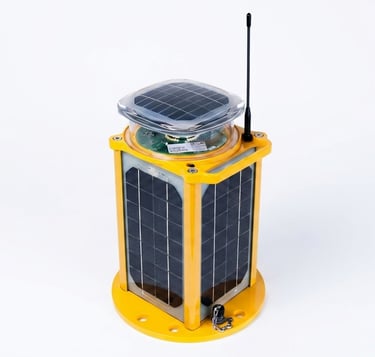

Solar Runway Lights A704
Overview: The A704 Solar Runway Light by Carmanah Technologies is designed to meet traditional airfield requirements with easy installation and low maintenance. It is available in models with maximum outputs of 250 cd, 500 cd, and 750 cd, and is compliant with ICAO and FAA standards.
Key Features:
Advanced Design: Utilizes high-efficiency monocrystalline solar panels and the latest LEDs for improved optical efficiency and reduced power consumption.
Easy Installation: Requires no trenching or airfield interruptions, with optional wireless control for operation up to 4 km away.
Low Maintenance: Integrates solar panels, battery, electronics, and LED light source into a compact unit with minimal maintenance for up to 7 years.
Reliability: Features an Energy Management System (EMS) for consistent output in harsh environments, tested to ICAO, FAA, and MIL specifications.
Applications: Suitable for medium-intensity runway edge and threshold lighting, simple approach lighting, NVG operations, and emergency or temporary lighting
Specifications:
Optical: High-power LEDs with max outputs of 250 cd, 500 cd, or 750 cd, compliant with ICAO and FAA chromaticity standards.
Energy Collection: High-efficiency cells with MPPT-TC for optimal energy collection.
Energy Storage: Pure-lead VRLA AGM battery with a 5+ year life, replaceable and recyclable.
Construction: Features a UV-resistant polycarbonate lens and a waterproof, vented battery compartment.
Environmental Tolerance: Operates optimally between -30 to 50 ºC and withstands wind speeds up to 644 kph.
Compliance: Meets various ICAO and FAA standards for runway lighting.
Configuration Options:
Available in multiple color configurations and sizes with optional wireless control and charge ports.
Optional handheld controller for remote operation.
Weights and Dimensions:

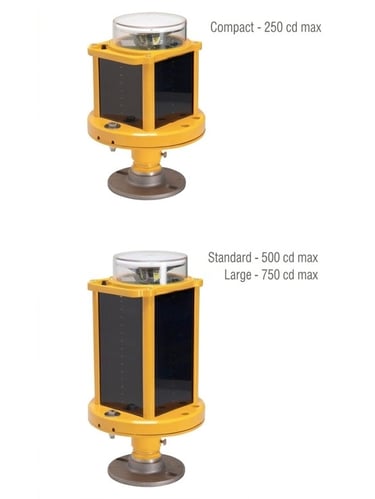

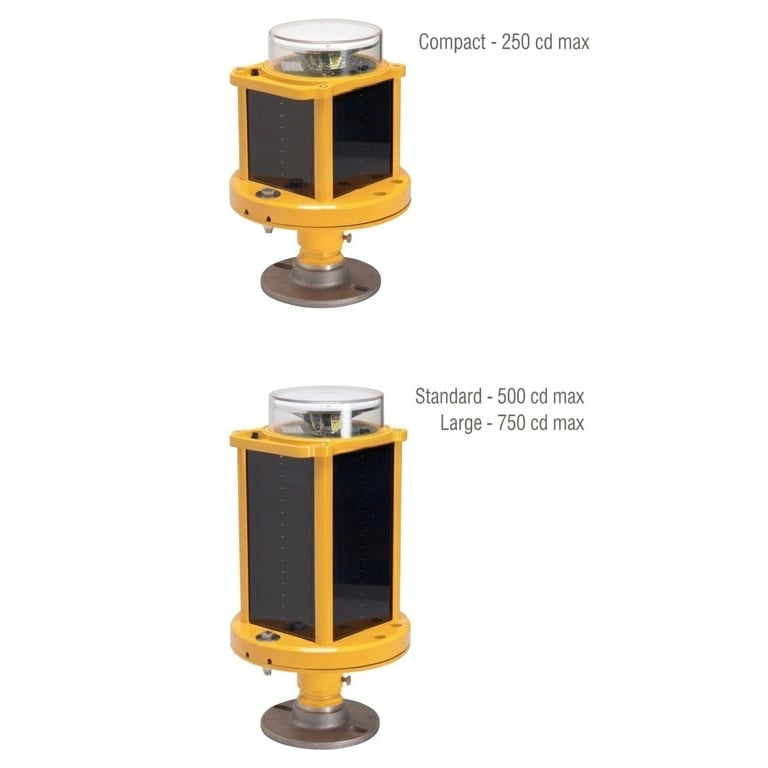

Compact model weighs 4.9 kg, standard model 6.7 kg, and large model 10.5 kg.
